NF C 33-226 12/20 (24) kV cable Description:

NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV.
They are AD8 following NF C 13-200 with a water pressure < 0,2 bar. .
The cable is made of 1 or 3 bunched cores. Aluminium screen is  made to ground short-circuit currents of EdF network, up to 1000 A for 1 s. for underground networks.

MT NF C 33-226 12/20 (24) kV ABC Cable Charateristics:

MT NF C 33-226 12/20 (24) kV ABC Cable
MT NF C 33-226 12/20 (24) kV ABC Cable

Design NF C 33-226
Voltage Rating 12/20kv
Temperature Rating 0°C to +90°C
Minimum Bending Radius 12 x overall diameter
Flame retardant IEC 60332-1
Sheath Colour Black

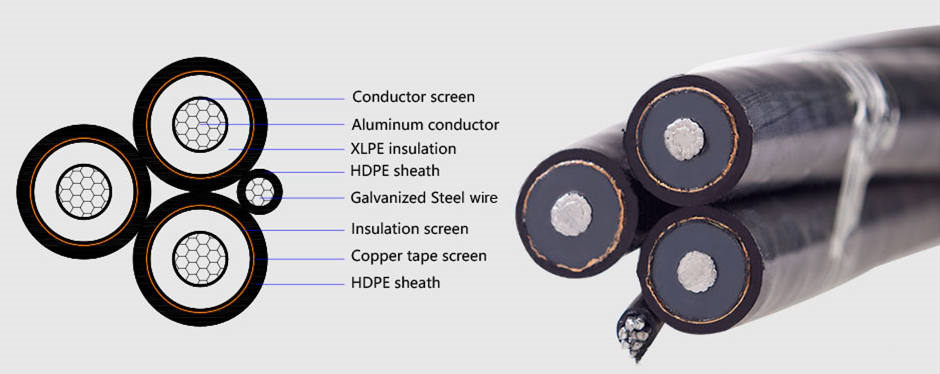

Cable MT NFC 33-226 12/20 (24) kV Construction:

Conductor Class 2 stranded aluminum conductor according to IEC/BS EN 60228
Conductor Screen Semi-conductive screen material
Insulation XLPE (Cross-Linked Polyethylene) Type GP8 according to BS 7655
Insulation Screen Semi-conductive screen material
Metallic Shield Overall copper tape shield according to BS 6622
Wrapping tape Binding non-woven fabrics tape
Outer Sheath HDPE Weather-resistant Type TM1 according to BS EN 50363

Cable MT NF C 33-226 12/20 (24) kV ABC 3C*150mm2 Specification:

SizeUnit3C*150mm2
Conductor--
-Cores number-3
-Conductor sizemm2150
-Material-Aluminum wires
-StructureNo.19
-Diameter mm14.4
Conductor screen -Extruded Semi-conductive layer
-Nominal thicknessmm0.7
Insulation--
-Material-Extruded XLPE Flame Retardant
-Nominal thicknessmm5.5
-Min.Point Thickness-5.23
Insulation screen-Extruded Semi-conductive layer
-Nominal thickness of insulated shieldmm0.6
Metallic shield-Soft Copper Tape
-Thickness*widthmm0.12*40
Wrapping tape-Water block Non-woven fabrics tape
Outer Sheath-HDPE  Flame Retardant&Weather-resistant
-Color-Black
-Nominal thicknessmm2
-Approximate overall diametermm68.5
-Approximate weight of completed cablekg/km3500
Electrical Characteristics --
-D.C resistance at 20°C of conductor ≤Ohm/Km0.206
-Current capacityA270
-Test voltage-42kV/5Min(Not Broken)

Cable MT NFC 33-226 12/20 (24) kV Why Choose Us?

Huadong Cable Group is a reliable MT NF C 33-226 12/20 (24) kV ABC 3C*150mm2 manufacturer with almost 30 years of experience. Every production process has been strictly checked by our professional technical engineers.
Email: huadongrubbercable@163.com

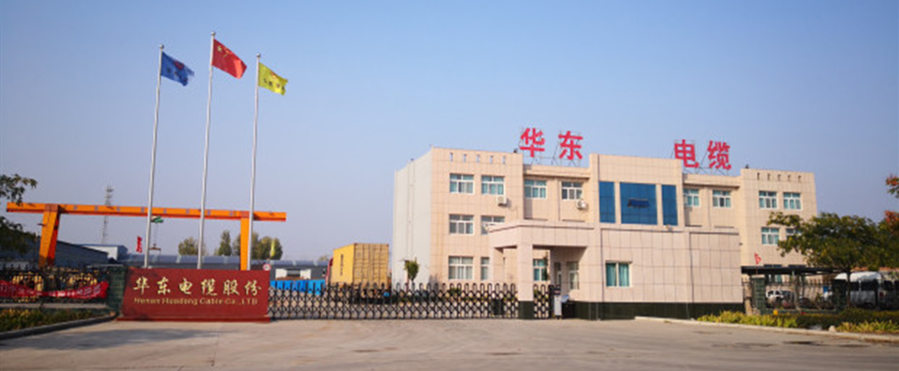

Huadong MT NF C 33-226 12/20 (24) kV ABC 3C*150mm2 factory
Huadong MT NF C 33-226 12/20 (24) kV factory

Package & Delivery: We package Cable MT NFC 33-226 12/20 (24) kV with iron or wooden drum, and we can also package it according to your requirement. If you want to get the best Cable MT NFC 33-226 12/20 (24) kV with reasonable price, feel free to leave your message. We will send our competitive Cable MT NFC 33-226 12/20 (24) kV price to you in 12 hours.

low Cable MT NFC 33-226 12/20 (24) kVbuy MT NF C 33-226 12/20 (24) kV ABC 3C*150mm2

Customer Case:Our MT NF C 33-226 12/20 (24) kV ABC 3C*150mm2 have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
