Drum Reeling Cable Application:
Drum Reeling Cable use in hoists, transporting machines and conveyors, in power chains, as drum and drag cables and as hawsers.
Wherever cables are reeled, unreeled, guided by roller trains or similar.
Oil and UV resistant to BS EN/IEC 60811-2-1.
0.6/1 kV NSHTOU Drum Reeling Crane Cable is to be used in dry and humid locations as well as in the open-air for frequent reeling processes and when the NSHTOU Drum Reeling Cable is exposed to heavy tensile and torsion load as well as to forced bending as in the case of piped vehicles,line chains,
drums or other mechanical equipment. Travel speed up to 120 m/min.
NSHTOU Drum Reeling Cable Construction:
Insulation:EPR (Ethylene Propylene Rubber compound Type 3GI3
Core identification: 4 core: Green/Yellow Black Grey Brown
5 core: Green/Yellow Black Blue Brown Grey
above 5 cores & Order quantity below MOQ in White+number code.
Filler:Rubber Type 3GI3
Inner bedding: Polychloroprene 5GM5
Reinforcement: Kevlar fiber braiding
Outer sheath: Polychloroprene 5GM5 Oil resistant and flame retardant
Drum Reeling Cable Characteristics:
Electrical parameters
Rated voltage 0.6/1 kV Max. permissible operating voltage AC 1.2 kV Test voltage 2.5 kV
Thermal parameters
Permissible temperature at conductor -25℃ to +90 °C Max. short circuit temperature of the conductor 250 °C
Mechanical parameters
Min. bending radius 8 x

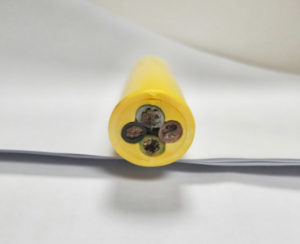

| Description | Unit | Request |
|---|---|---|
| Specification | - | 4C*16mm2 |
| Conductor | - | Tinned Copper Wire Stranded cl.5 |
| Max. wires dia. | mm | 0.41 |
| Diameter | mm | 5.7 |
| Insulation | - | EPR |
| Identification | - | Black Brown Grey Y/G |
| Nominal thickness | mm | 1.2 |
| Filler | - | Rubber fibers |
| Inner bedding | - | PCP |
| Nominal thickness | mm | 1.2 |
| Color | - | Yellow |
| Reinforcement | - | Kevlar fibers braiding |
| Outer sheath | - | PCP |
| Nominal thickness | mm | 3.2 |
| Color | - | Yellow |
| Approx.Outer Diameter | mm | 26 |
| Max. conductor resist. @20℃ | Ω/km | 1.24 |
Drum Reeling Crane Cable Standards:
DIN VDE 0250-814
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)
DIN VDE 0293-1
EN 60811-2-1 (Oil-resistant )
EN 60332-1-2 (Flammability )
0.6/1kV NSHTOEU-J Crane Reeling Cable Why Choose Us?
Huadong Cable Group is a reliable NSHTOEU-J Crane Reeling Cable manufacturer with almost 30 years of experience. In order to provide high quality products, we produces NSHTOU Reeling Crane Cable with superior copper material and insulation material. Every production process has been strictly checked by our professional technical engineers.
Email: huadongrubbercable@163.com
Package & Delivery: We package NSHTOU Drum Reeling Cable with iron or wooden drum, and we can also package it according to your requirement. If you want to get the best NSHTOEU-J Crane Reeling Cable with reasonable price, feel free to leave your message. We will send our competitive Drum Reeling Cable price to you in 12 hours.
Customer Case：Our Drum Reeling Cable have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
