W7BPP,W3BP,W4B Logging Cable For Sales

Application Scopes and Standard Of Logging Cable:

The Logging Cable is not only used for operation of well logging,perforating and coring for various types of oil and gas wells but also used for the investigation of the oceans,rivers,bays,hydrological measurong.coalfield geological prospecting and geothermal well logging.And,the cable is served as the connecting wire for weight hanging instrument.Standard:SY/T6600–2004 Q/HN039/2014

Three Core Logging Cable Details:

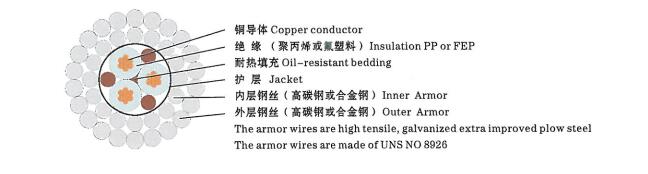

Three Core Logging Cable

W3BP Logging Cable Parameters:

TypeSpec
No. of cores X cross section mm2
O.D and
tolerance mm
Conductor dia.
No. X dia
mm
Nom.
thickness of insulation
mm
Structure of steel wire Min.
Bending dia
mm
High-temp
resistant
Weight
km/kg
Inner layerOuter layer
W3BP-5.603*0.245.60±0.107*0.210.2612*0.7918*0.79320150135
W3F46P-5.603*0.245.60±0.107*0.210.2612*0.7918*0.79320232142
W3BP-8.003*0.568.00±0.107*0.320.4518*0.8118*1.11450150255
W3F46P-8.003*0.568.00±0.107*0.320.4518*0.8118*1.11450232265
W3BP-11.803*1.008.00±0.107*0.43124*1.0024*1.26500150500

W3BP Logging Cable Performance:

TypeD.C resistance of conductor at 20℃
No more than Ω/km
Insulation
resistance
MΩ.km
Cable withstands
voltage
VDC
Capacitance
Pf/m
(1khz)
Hight-temp-
insulation
resistance
MΩ.km
Elongation
coefficient of cable
m/km/5kN
Rated breaking
tension
KN
W3BP-5.60755001000≤ 170150℃≥2.52.525
W3F46P-5.60755001000≤ 170200℃≥5.02.525
W3BP-8.0033150001000≤ 175150℃≥2.51.445
W3F46P-8.0033150001000≤ 170200℃≥5.01.445
W3BP-11.8018.11500015000≤ 140150℃≥2.50.880

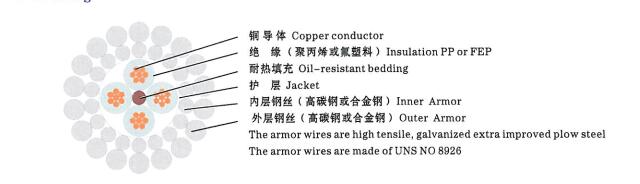

Four Core Logging Cable Details:Four Core Logging Cable

W4B Logging Cable Parameters:

TypeSpec
No. of cores X cross section mm2
O.D and
tolerance mm
Conductor dia.
No. X dia
mm
Nom.
thickness of insulation
mm
Structure of steel wire Min.
Bending dia
mm
High-temp
resistant
Weight
km/kg
Inner layerOuter layer
W4B-4.704*0.224.70±0.107*0.200.1918*0.4718*0.6425015085
W4BP-5.604*0.225.60±0.107*0.200.1912*0.7918*0.79320150142
W4F46P-5.604*0.225.60±0.107*0.200.1912*0.7918*0.79320232145
W4BP-8.004*0.568.00±0.107*0.320.3818*0.8118*1.11450150255
W4F46P-8.004*0.568.00±0.107*0.320.3818*0.8118*1.11450232265

W4B Logging Cable Performance:

TypeD.C resistance of conductor at 20℃
No more than Ω/km
Insulation
resistance
MΩ.km
Cable withstands
voltage
VDC
Capacitance
Pf/m
(1khz)
Hight-temp-
insulation
resistance
MΩ.km
Elongation
coefficient of cable
m/km/5kN
Rated breaking
tension
KN
W4B-4.7084.35001000≤ 190150℃≥2.54.513
W4BP-5.6084.35001000≤ 150150℃≥2.52.525
W4F46P-5.6084.35001000≤ 175200℃≥5.02.525
W4BP-8.0033150001000≤ 195150℃≥2.51.445
W4F46P-8.0033150001000≤ 190200℃≥5.01.445

Seven Core Logging Cable Details:

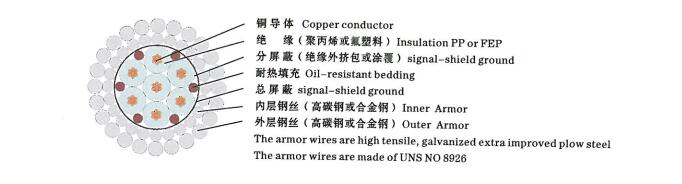

Seven Core Logging Cable

W7BPP Logging Cable Parameters:

TypeSpec
No. of cores X cross section mm2
O.D and
tolerance mm
Conductor dia.
No. X dia
mm
Nom.
thickness of insulation
mm
Structure of steel wire Min.
Bending dia
mm
High-temp
resistant
Weight
km/kg
Inner layerOuter layer
W7B-6.47*0.246.40±0.107*0.210.2518*0.6318*0.89350150160
W7BP-11.87*0.5611.80±0.107*0.320.7224*1.0024*1.26500150498
W7BPP-11.8502
W7BP-12.67*0.5612.60±0.107*0.320.8726*1.0025*1.26500232519
W7BPP-12.6521
W7BP-13.27*0.5613.20±0.107*0.320.7217*1.4723*1.47600150650
W7BPP-13.2655
W7F46P-11.87*0.5611.80±0.107*0.320.7224*1.0024*1.26500232502
W7F46PP-11.8504
W7F46P-12.67*0.5612.60±0.107*0.320.8726*1.0025*1.26500232528
W7F46PP-12.6530
W7F46P-13.27*0.5613.20±0.107*0.320.7217*1.4723*1.47600232651
W7F46PP-13.2656
FL-W7F46PP-11.87*0.5611.80±0.107*0.320.7224*1.0024*1.26500232504

W7BPP Logging Cable Performance:

TypeD.C resistance of conductor at 20℃
No more than Ω/km
Insulation
resistance
MΩ.km
Cable withstands
voltage
VDC
Capacitance
Pf/m
(1khz)
Hight-temp-
insulation
resistance
MΩ.km
Elongation
coefficient of cable
m/km/5kN
Rated breaking
tension
KN
W7B-6.484.35001000≤ 130150℃≥2.52.8580
W7BP-11.833150001200≤ 140150℃≥2.50.880
W7BPP-11.8
W7BP-12.633150001200≤ 135150℃≥2.50.885
W7BPP-12.6
W7BP-13.233150001200≤ 140150℃≥2.50.985
W7BPP-13.2
W7F46P-11.833150001200≤ 130200℃≥50.885
W7F46PP-11.8
W7F46P-12.633150001200≤ 120200℃≥50.885
W7F46PP-12.6
W7F46P-13.233150001200≤ 130200℃≥50.985
W7F46PP-13.2
FL-W7F46PP-11.833150001200≤ 130200℃≥50.885

Logging Cable Why Choose Us?

Huadong Cable Group is a reliable W3BP Logging Cable manufacturer with almost 30 years of experience. In order to provide high quality products, we produces Logging Cable with superior copper material and insulation material. Every production process has been strictly checked by our professional technical engineers.
Email: huadongrubbercable@163.com

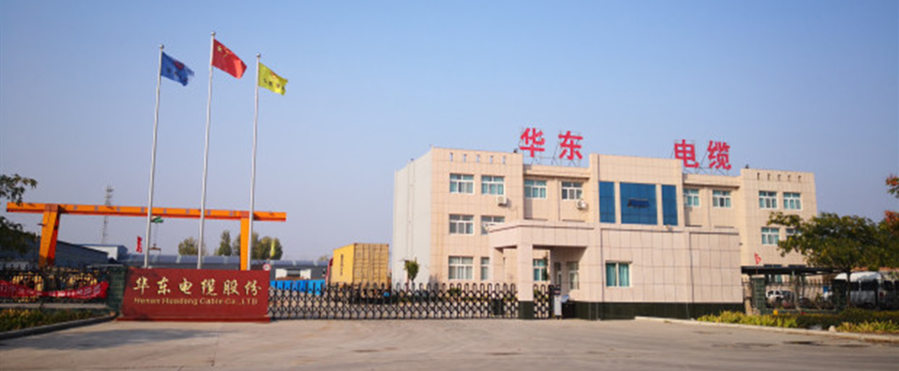

Huadong Logging Cable factory
Huadong Logging Cable factory

Package & Delivery: We package W4B Logging Cable with iron or wooden drum, and we can also package it according to your requirement. If you want to get the best W7BPP Logging Cable with reasonable price, feel free to leave your message. We will send our competitive Logging Cable price to you in 12 hours.

low price 1 gauge welding wirebuy 1 gauge welding cable

Customer Case:Our cable products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
