RFOU Shipboard/Offshore Instrumentation Cable Application:
A halogen free fire resistant, individually screened, instrumentation and telecommunication cable for fixed installation.
Suitable for use in all marine environments such as muddy, dry, wet or oily conditions.

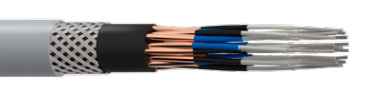

RFOU Shipboard Cable Construction:
Conductor Stranded tinned copper conductor
Insulation Halogen free EPR (Ethylene Propylene Rubber)
Individual Screen Copper-mylar tape with tinned copper drain wire
Bedding Halogen free SHF2 compound
Overall Screen TCWB (Tinned Copper Wire Braiding)
Outer Sheath SHF2 (halogen free, mud resistant)
RFOU Offshore Cables Standards:
Design: NEK 606 S3/S7, IEC 60092-376, IEC 60092-350/351/359
Conductor: IEC 60228
Insulation&Sheath: IEC 60092-360
Flame retardant: IEC 60332-1-2, IEC 60332-3-22
Halogen emission: IEC 60754-1 & 2
Smoke emission: IEC 61034-1 & 2
RFOU Shipboard Cable Characteristics:
Voltage Rating 300V
Test Voltage 2kV
Operating Temperature -20°C to +90°C
Minimum Bending Radius 10 x overall diameter
Core Identification
Pairs: Black Blue
Sheath Colour
Black or Grey or Blue
RFOU Shipboard Cable specifications：
| Description | Unit | Offer |
|---|---|---|
| Specification | - | 2P*0.75sq.mm |
| Conductor | - | Tinned Copper Wire Stranded |
| Diameter | mm | 1.2 |
| Insulation | - | HF-EPR |
| Color | - | Black/Blue |
| Thickness | mm | 0.6 |
| Pairs | mm | 4.8 |
| Wrapping | - | Polyester tape |
| Individual screen | - | Cu-mylar tape with Tinned copper drain wire |
| Inner bedding | - | SHF2 |
| Thickness | mm | 1.1 |
| Overall screen | - | Tinned copper wire braiding |
| Density Min. | % | 85 |
| Outer sheath | - | SHF2 |
| Nominal thickness | mm | 1.2 |
| Color | - | Black |
| Estimated Outer Diameter | mm | 13 |
| Approx.weight of complete cable | kg/km | 270 |
| Max. conductor resist. @20℃ | Ω/km | 26.7 |
